Radiopaque FEP/ETFE Tubing
- This tubing is produced using FEP or ETFE resins compounded with radiopaque agents such as BaSO₄, tungsten, etc., and can be tailored to meet diverse customer specifications.
- Backed by over a decade of expertise in compounding and dispersion technology, the radiopaque agents are homogeneously distributed within the base resin, ensuring stable manufacturing performance even for ultra-fine tubing requiring exceptional uniformity and precision.
Category:
Share
Details
Features
- Excellent Radiopacity
Easily trackable under X-ray or CT imaging. -
Good Mechanical Strength and Flexibility
Maintains adequate rigidity and pushability even with thin walls, ensuring smooth maneuverability. -
Low Friction Coefficient
Smooth surface allows easy passage through blood vessels while minimizing tissue damage. -
Outstanding Dimensional Stability
Precise tubing dimensions with tight tolerances. - Excellent Biocompatibility
Validated through biocompatibility testing, including Cytotoxicity, Acute Systemic Toxicity, Intracutaneous Reactivity, etc. - Customizable Radiopaque Options
Type and content (e.g., Barium Sulfate， Bismuth Oxide， tungsten) adjustable
Processing Support
- 3-stripe co-extrusion, tapering, thin-wall tubing, etc.

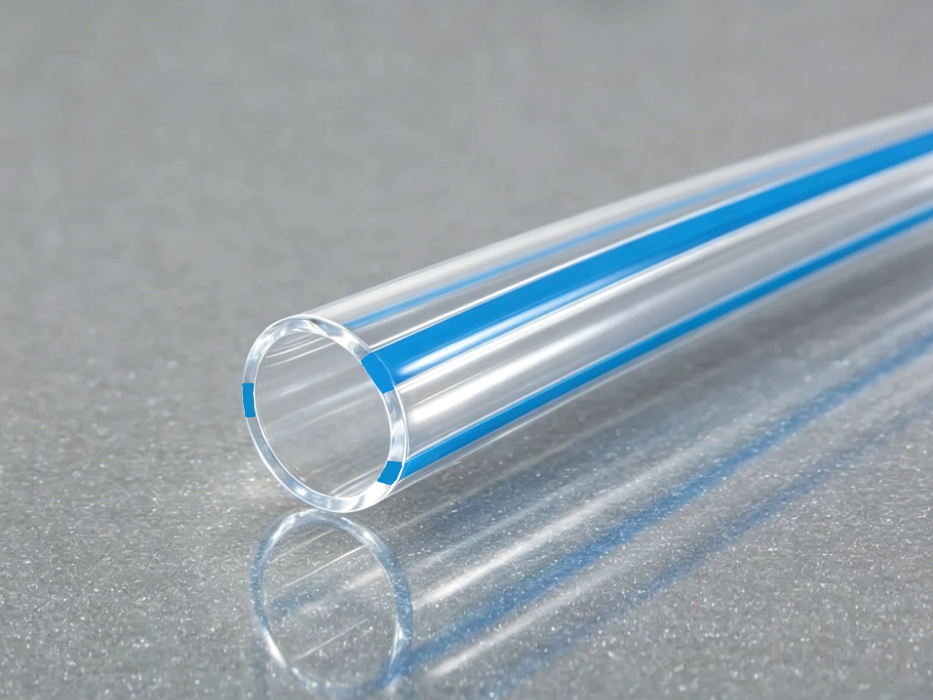

| 3-stripe co-extrusion | |
|
|

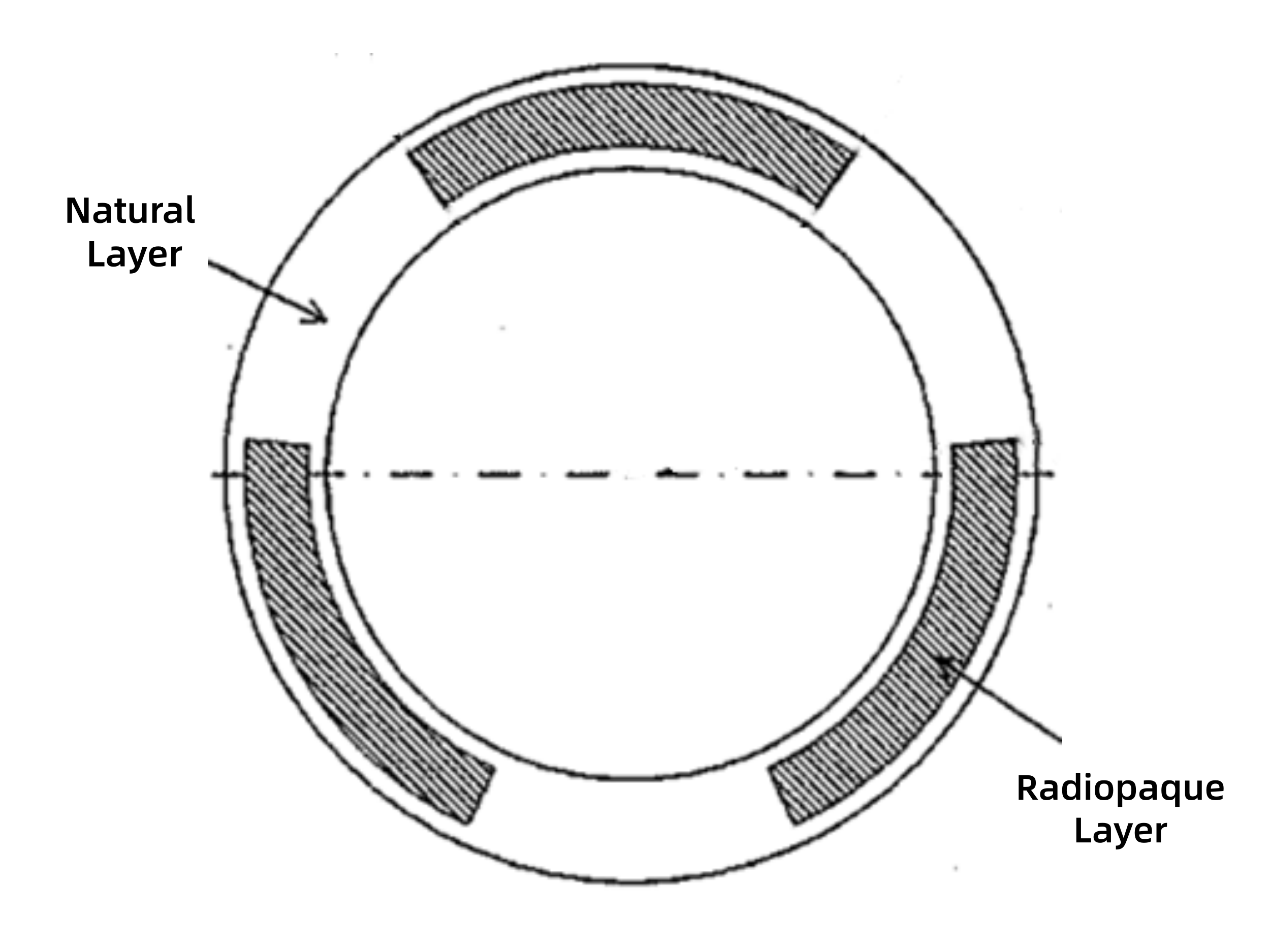

| Cross-sectional View |
|
Specifications
| Flow Rate | ID (mm) | OD (mm) | Tolerance (mm) | Minimum Concentricity |
| 14G | 1.70 | 2.10 | ±0.05 | 85% |
| 16G | 1.30 | 1.62 | ±0.04 | 85% |
| 18G | 1.00 | 1.30 | ±0.04 | 85% |
| 20G | 0.82 | 1.10 | ±0.04 | 85% |
| 22G | 0.62 | 0.90 | ±0.03 | 85% |
| 24G | 0.49 | 0.72 | ±0.03 | 85% |
Main Applications
- IV catheter tubing
- Vascular, urological, gastrointestinal imaging / neurovascular intervention, etc.
